PDC Flat-head Drill Bit
Huanghe whirlwind co.,ltd specialized in six industrial fields and professional supply over 146 kind product verified in over 400 specifications.As the Superhard composite material department,our product range including Earth drilling tools,PDC cutter,PDC drill bit,Holder and blade of Chain saw and other superhard composite material tools.
Features: High wear resistance and high efficiency
Formation: Suitable for Hard formations (granite, basalt, volcanic, andesite etc)
Application: Water well, Mining exploration & Probing, Geothermal and Geological prospecting…
product details
Sizes: 75mm~165mm
PDC cutter used: 1308mm
Type: Steel body and matrix body/sintered body
Gauge protection: Diamond-impregnated gauge/Alloy insert gauge
Features: High wear resistance and high efficiency
Formation: Suitable for Hard formations (granite, basalt, volcanic, andesite etc)
Application: Water well, Mining exploration & Probing, Geothermal and Geological prospecting…
Excellent performance
Tungsten carbide material
Solid and durable
High wear resistance
High drilling efficiency
Impact toughness
Long service life
Two types

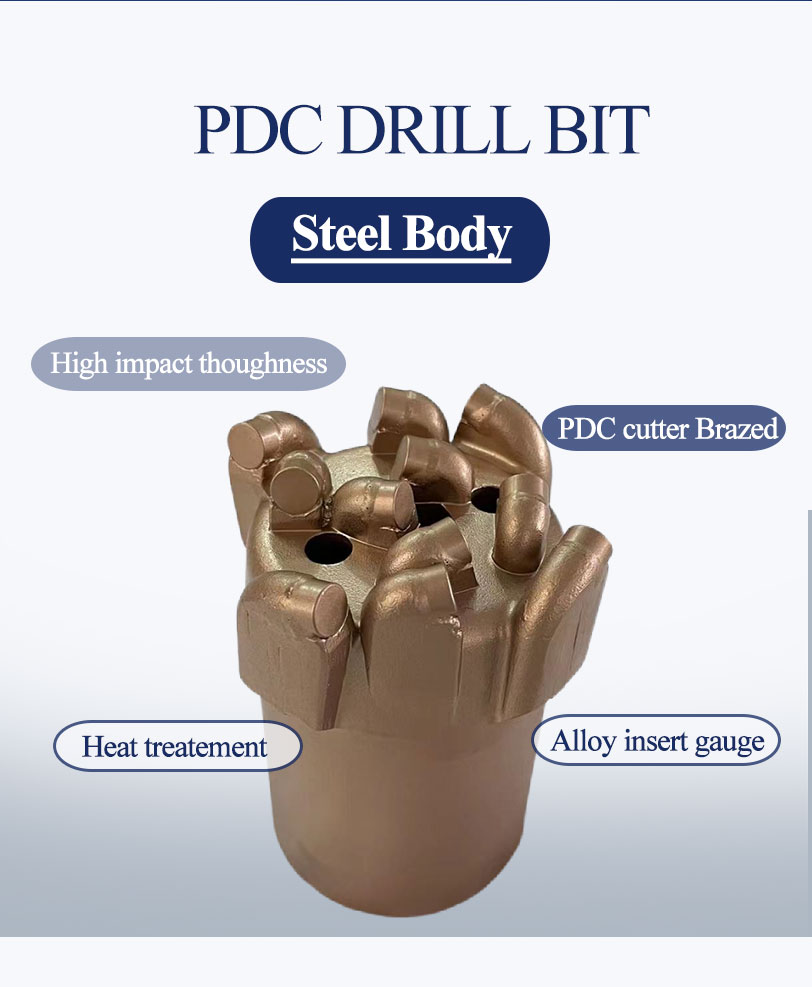

Steel body: The body of a PDC bit is made from steel which is sintered to a steel core.
High impact toughness, PDC cutter Brazed, Heat treatment and Alloy insert gauge
Matrix body: The body of a PDC bit is made from a matrix of tungsten carbide and an alloy to bind the matrix, which is sintered to a steel core.
High wear and erosion resistance, Tungsten carbide powder, Diamond impregnated gauge and PDC cutter Brazed
