For Mining
The PDC cutter has the features of good wear resistance, impact resistance, and good thermal stability, which is widely used for mining, geological exploration, oil and gas drilling, marble quarrying and so on.
Standard Sizes available:
0808/1004/1008/1304/1308/1313/1608/1613/1616/1908/1913mm
Shape:
Plain/flat; round; spherical/dome; conical etc
*Non-standard sizes available on request.
Why choose the drilling tools with PDC cutters :
– High impact resistance and abrasion resistance;
–Engineered to enable better durability, faster drilling and higher rates of penetration (ROP) throughout the drilling cycle;
–Ensuring to achieve longer tool life and exceptionally low wear rates protect the drill body, maximize interval lengths and reduce bit trips.
product details

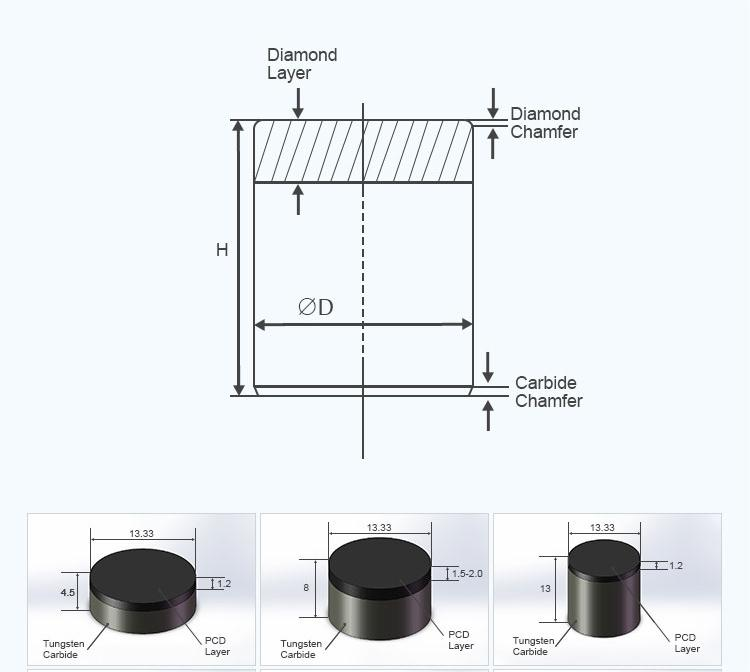

PDC cutter（Polycrystalline Diamond Compact cutter）is a disk made of polycrystalline diamond, synthesized by sintering diamond grit with a catalyst under ultra-high pressure and ultra-high temperature. Polycrystalline diamonds possess extreme hardness-similar to that of natural diamond, the world’s hardest naturally occurring substance-with the strength and durability of tungsten carbide.
The PDC cutter has the features of good wear resistance, impact resistance, and good thermal stability, which is widely used for mining, geological exploration, oil and gas drilling, marble quarrying and so on.
| Model | Wear ratio ( ×104) | Impact resistance (J) |
| 1004ZF | 25 | 400 |
| 1004SL | 30 | 500 |
| 1004GI | 38 | 550 |
| 1204ZF | 25 | 400 |
| 1204GI | 38 | 550 |
| 1304ZF | 25 | 400 |
| 1304MP | 40 | 800 |
| 1304DM | 50 | 900 |
| 1305SL | 40 | 500 |
| 1305DM | 50 | 900 |
| 1308EN | 40 | 500 |
| 1308DM | 50 | 1200 |
| 1308EC | 55 | 1000 |
| 1308HC | 60 | 1100 |
| 1313SH | 50 | 800 |
| 1608SH | 50 | 1400 |
| 1613SH | 50 | 1400 |
*Non-standard sizes available on request.
