PDC Drag Bit: Efficient Shearing, Smooth Cuttings Removal, and Application-Focused Design
Introduction
In soft to medium formation drilling, cutting efficiency, cuttings evacuation, and borehole gauge protection are important considerations when selecting a drill bit. Soft rock, shale, and sandstone can require a cutting structure that balances efficient rock removal with stable drilling performance.

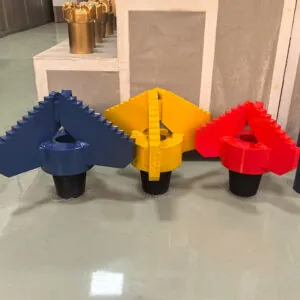

The PDC Drag Bit is designed for soft to medium formations, including soft rock, shale, and sandstone. With a fast shearing cutting action, effective cuttings evacuation, and multiple gauge protection options, it provides a practical drilling solution for a range of suitable applications.
1. Fast Shearing Action for Efficient Rock Cutting
The PDC Drag Bit uses a cutting structure designed to shear the formation as the bit rotates. This cutting action is intended to remove rock material efficiently rather than relying primarily on grinding.
For suitable formations, an effective shearing design can support productive drilling operations. Actual penetration performance depends on formation properties, cutter configuration, drilling parameters, and equipment capabilities.
2. Excellent Cuttings Evacuation for Continuous Drilling
Removing cuttings from the cutting area is an important part of maintaining effective drilling operations. The PDC Drag Bit features a design intended to provide excellent cuttings evacuation.
Effective cuttings removal helps clear the cutting area and supports the ongoing interaction between the cutters and the formation. The appropriate bit design should be selected according to formation characteristics and the operating conditions of the drilling system.
3. Gauge Protection Options to Match Different Requirements
Gauge protection helps maintain the intended borehole diameter during drilling. Our PDC Drag Bit offers different gauge protection designs to address different application requirements.
PDC Gauge Inserts Under the Blades
PDC gauge inserts are positioned beneath the blades as part of the gauge protection design.
Alloy Gauge Pads on the Side Blades
Alloy gauge pads are provided on the side blades as an alternative gauge protection arrangement.
The choice of gauge protection should consider the formation, required hole diameter, and drilling conditions. A suitable configuration helps align the bit design with the project’s borehole requirements.
4. Low Torque and Low Weight on Bit Requirements
The PDC Drag Bit is designed with low torque and low weight on bit (WOB) requirements among its stated product advantages.
These characteristics may be relevant when evaluating bit compatibility with drilling equipment and operating parameters. However, the actual torque and WOB requirements vary with formation conditions, bit diameter, cutter arrangement, and drilling setup.
For the best selection, customers should assess these factors together rather than treating any single parameter as a fixed value.
5. Multiple Designs and Customization Support
Different drilling projects can require different bit configurations. Our PDC Drag Bit offers multiple designs, with customization supported to help meet specific application requirements.
When evaluating a customized solution, relevant factors include:
- Formation type and rock characteristics
- Required bit diameter
- Gauge protection requirements
- Drilling equipment and operating parameters
- Project-specific design requirements
Sharing these details enables a more focused technical discussion and helps identify a suitable product configuration.
Conclusion: Match Your PDC Drag Bit to the Formation
A well-selected PDC Drag Bit should match the formation, drilling equipment, and borehole requirements. Its fast shearing cutting action, cuttings evacuation design, and available gauge protection options provide important considerations for soft to medium formation drilling.
For drilling applications involving soft rock, shale, or sandstone, our team can help you evaluate the appropriate PDC Drag Bit design based on your operating conditions.
Looking for a PDC Drag Bit tailored to your drilling project? Contact us to discuss your formation, bit diameter, and gauge protection requirements.
