PDC Arc Bit: Engineered for Stable and Efficient Drilling in Hard Formations
In hard-rock drilling, cutting efficiency, drilling stability, and wear resistance are essential factors in selecting the right drill bit. A suitable bit design can help maintain consistent cutting performance, reduce unnecessary vibration, and support more reliable drilling operations.

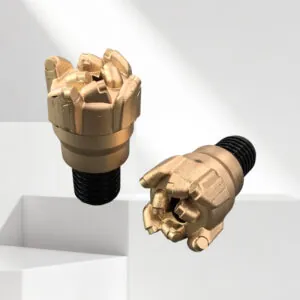

The PDC Arc Bit features an arc-shaped blade design developed to promote smooth engagement with the formation. Combined with flexible cutter configurations and two body material options, it provides a practical solution for demanding hard-formation drilling applications.
1. Arc-Shaped Blade Design for Controlled Cutting
The distinctive arc-shaped blade geometry helps the cutters engage smoothly with the rock surface. This design reduces slippage and vibration, supporting a more direct cutting action rather than relying primarily on grinding.
For drilling contractors, more stable cutter engagement can help improve operational consistency and make drilling performance easier to manage under changing formation conditions.
2. Single-Row and Double-Row Cutter Configurations
Different formations and drilling conditions require different cutter arrangements. Our PDC Arc Bit is available with single-row and double-row cutter configurations to accommodate different operational requirements.
- Single-row cutter design: A configuration option for applications where lower torque and fast penetration are important considerations.
- Double-row cutter design: Distributes the cutting load across more cutters, helping support drilling stability.
The appropriate configuration should be selected according to formation characteristics, drilling parameters, and equipment capabilities.
3. Steel Body or Matrix Body: Choose the Right Structure
To meet different operating requirements, the PDC Arc Bit is available in two body designs.
Steel Body
The steel body offers high toughness and impact resistance, making it a suitable option for drilling conditions where impact loads are a concern.
Matrix Body (Sintered)
The sintered matrix body provides excellent abrasion and erosion resistance. It is a suitable option for highly abrasive formations where resistance to material wear is a key consideration.
Selecting the right body material is an important part of balancing structural durability, wear resistance, and overall drilling performance.
4. Designed Around Your Drilling Conditions
A drill bit should be selected according to the actual formation rather than size alone. Cutter configuration, body material, and blade design all influence how a bit performs in the field.
We support customized designs based on customer requirements and drilling conditions. By evaluating formation characteristics, drilling equipment, and operating parameters, we can help customers identify a suitable PDC Arc Bit configuration.
Conclusion: Find the Right PDC Arc Bit for Your Project
When drilling in hard formations, the right combination of blade geometry, cutter arrangement, and body material can make a meaningful difference to drilling stability and wear performance.
Our PDC Arc Bit combines an arc-shaped blade design with single-row or double-row cutter options and steel or matrix body configurations, giving drilling professionals greater flexibility when selecting a solution for their projects.
Looking for a PDC Arc Bit for your drilling application? Contact our team with your formation details, bit diameter, drilling equipment, and operating conditions. We will help you evaluate a suitable configuration for your requirements.
